Glasswool Board
Glasswool Board
Rigid Thermal Insulation with Superior Acoustic Control

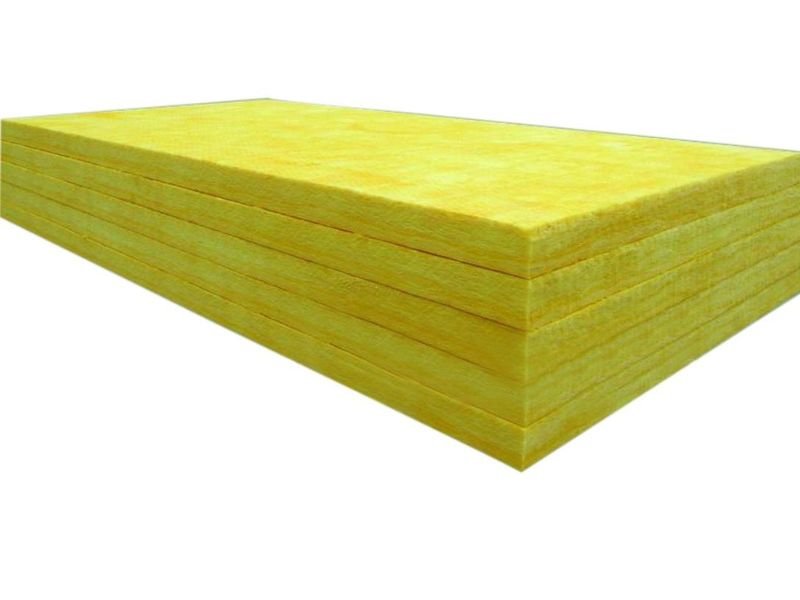

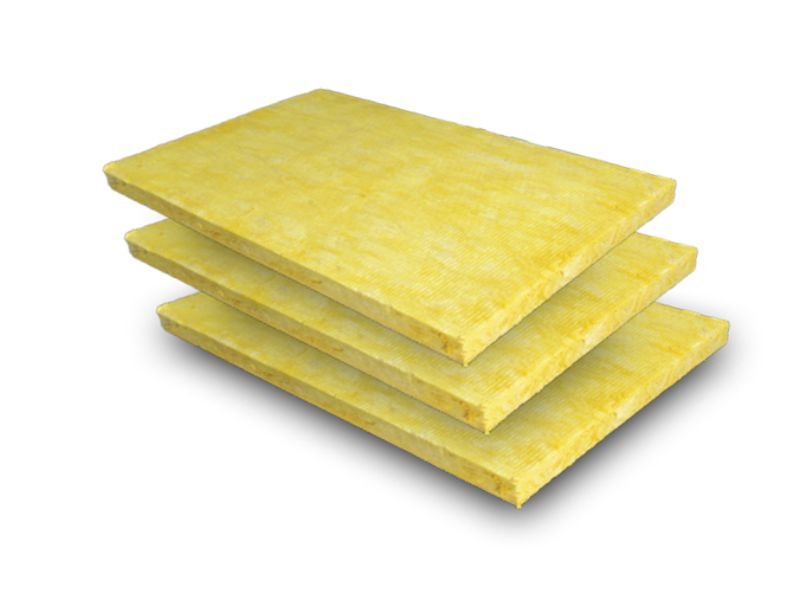

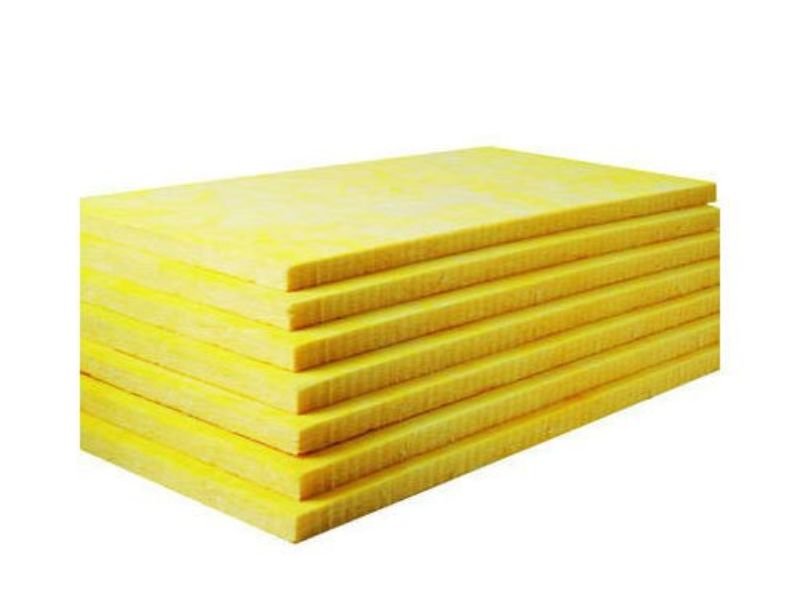

Glasswool Boards are rigid panels made from fine fibers of glass bonded together with a resin binder. These boards provide excellent thermal and sound insulation for wall partitions, ceilings, and ductwork. Available with optional facings like aluminum foil or black tissue for specific needs.
Technical Specifications:
| Property | Specification |
|---|---|
| Make / Brand | Twiga Insul |
| Company | Saint-Gobain India Pvt. Ltd. (UP Twiga) |
| Density | Slab - 32, 48, 64, 96 kg/m³ |
| Thickness | 25 to 100 mm |
| Size | Width - 0.6 m, Length - 1.2 m |

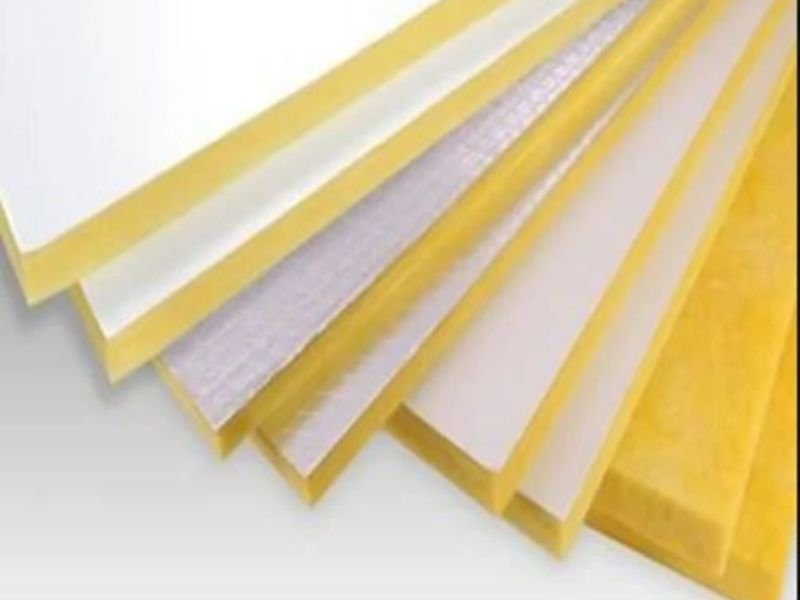

| Facings |
Plain Aluminium : FSK, Aluglass Polypropylene : White Metalized Polypropylene Tissue : FGT, BGT Cloth : WBC, BGC |
| Thermal Conductivity | 0.032 to 0.037 W/m.K at 25°C (IS 8183, IS 3346) |
| Fire Safety | Non-combustible (Class ‘0’ as per BS 476), does not emit toxic gases |
| Acoustic Properties | NRC up to 0.65 to 0.95 (ASTM C-423 / ISO 354) |
| Operating Temp. | Up to 230°C |
Note: Facing Available - FSK = Foil Scrim Kraft; FGT = Fiberglass Tissue; WBC = White Glass Tissue; BGT = Black Glass Tissue; BGC = Black Glass Cloth; WMP-VR = Premium White Facing; HSMAF = High Strength Meshless Aluminium Foil
Key Features:
- 1. High thermal resistance with low conductivity
- 2. Excellent sound absorption
- 3. Lightweight and easy to cut
- 4. Fire-resistant and non-corrosive
- 5. Available with various facings for vapor control
Applications:
- 1. Wall and partition insulation
- 2. False ceilings and soundproofing
- 3. HVAC duct insulation
- 4. Recording studios, office cabins, and theatres
